| Model |

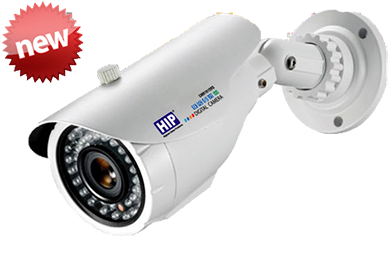

CMR1600RS-E3 |
| Menu control |
Support OSD Menu, Motion detection,Private Area,SONY Effio-E DSP |
| Image Sensor |
1/3" EXview HAD CCD II? |
| H.Resolution |
700TV Lines |
| Lens |
Lens(f=2.8~12mm) |
| Type lens |
Vari-focal Lens of korean(len 2,000,000 pixel) |
| Effective Pixel |
PAL:768(H)*494(V),NTSC:752(H)*582(V) |
| Min. Illumination |
0.06Lux/F1.2 |
| IR Distance |
30~40 meters |
| Dust&Water Resistance |
IP65 |
| Video Output |
1.0Vp-p Composite Output (75? / BNC) |
| S/N Ratio |
?52dB |
| LED Wave length |
42 unit 850nm infrared LED |
| Working Temperature |
-20?~+50? |
| Working Humidity |
?95% RH no dew |
| Power Supply |
DC12V(+/-10%), Max.1000mA |
| Power Consumption |
Max.1.2W |
| Packing Dimension |
270*165*120mm |
| Gross Weight |
0.86kgs |
| Accessories |
Buil in bracket |
|
